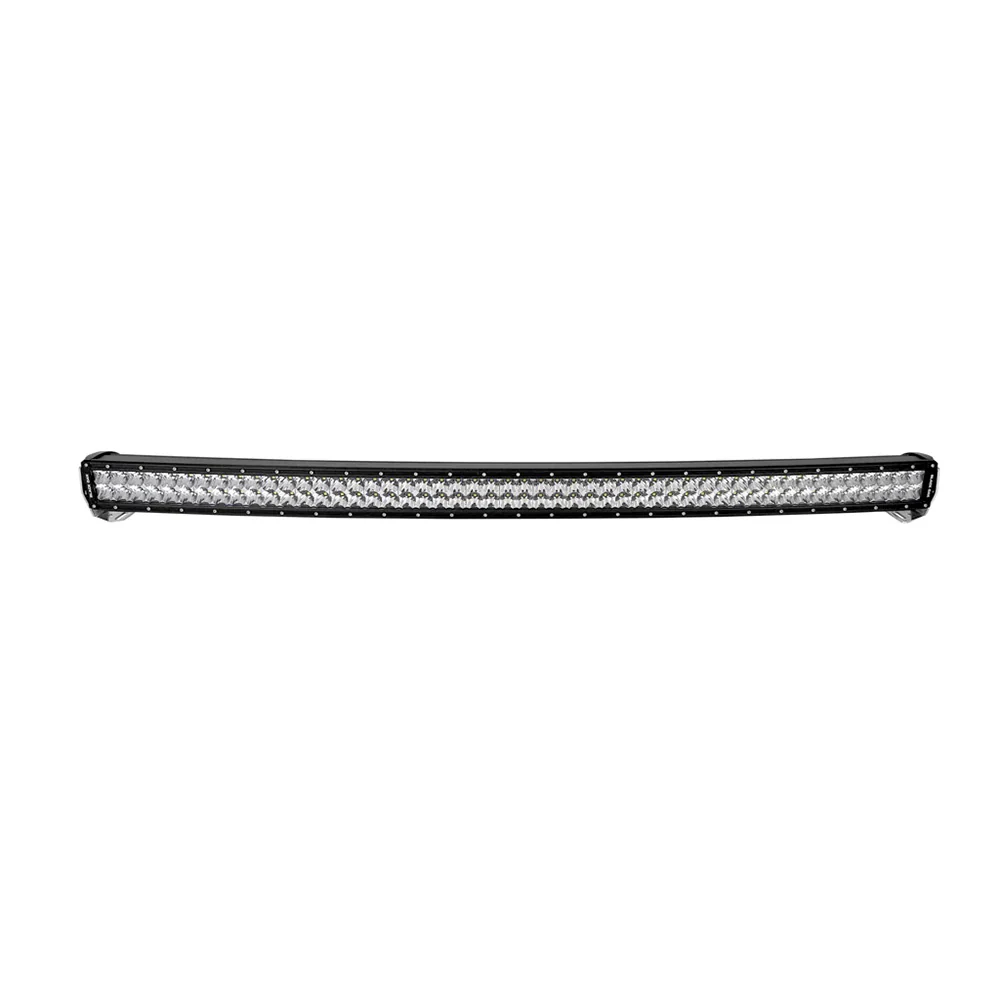

Black Oak Pro Series 3.0 Curved Double Row 40" LED Light Bar – Combo Optics, Black Housing
Unmatched Power. Rugged Durability. Serious Performance.
The Black Oak Pro Series 3.0 Curved Double Row 40" LED Light Bar is built to dominate extreme off-road, marine, and utility lighting needs. Featuring 80 high-output Osram 5W LEDs arranged in a double row across a curved 40-inch frame, this powerhouse produces a staggering 52,800 raw lumens of clean, white light. With both spot and flood optics, it delivers wide-area coverage with long-distance reach—perfect for UTVs, trucks, and roof rack applications.
Designed to thrive in brutal environments, the Pro Series 3.0 comes with IP69K-rated sealing, 360° ceramic protection, a Dynamax reinforced housing, and marine-grade stainless steel mounting hardware. Whether you're crawling through dunes or working in rough terrain, this bar is built for the challenge.
Why Choose the Black Oak Pro Series 3.0 – 40" Curved Light Bar?
âś… Extreme Brightness
80 Osram 5W LEDs deliver 52,800 raw lumens with 400W of lighting power.
âś… Combo Beam Pattern
Spot and flood optics combine for distance and area lighting in one powerful beam.
âś… Rugged & Waterproof
IP69K rating, 2-stage Hydrex seal, and ceramic coating defend against water, salt, and UV damage.
âś… Durable Build
Heavy-duty Dynamax housing and Lexan lens resist impacts, dust, and debris.
âś… Easy Install Kit Included
Includes wiring harness, switch, brackets, and hardware—ready for plug-and-play installation.
Technical Specifications
| Feature | Specification |
|---|---|
| Total Wattage | 400W |
| Amp Draw | 17.9 Amps |
| LED Count | 80 Osram 5W LEDs |
| Raw Lumens | 52,800 |
| Voltage Range | 12V |
| IP Rating | IP69K (fully sealed, submersible) |
| Beam Pattern | Spot-Flood Combo |
| Housing Color | Black |

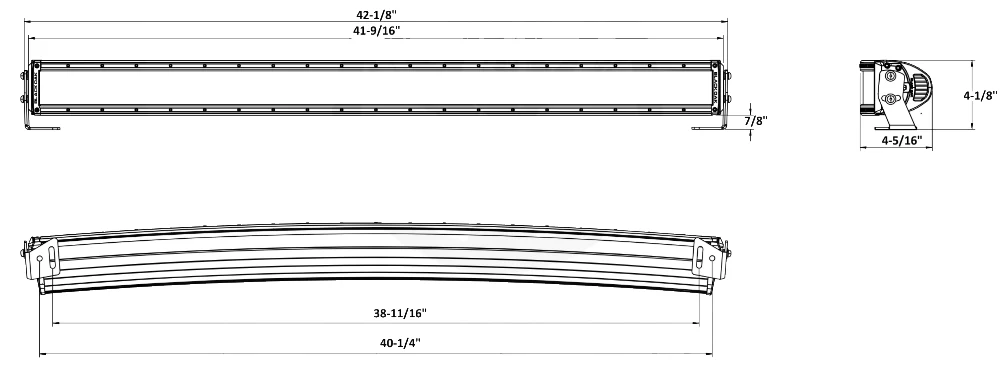

| Dimensions (with brackets) | 41.4" x 4.125" |
| Weight | 13.8 lbs |
| Connection | Deutsch connector |
| Warranty | Lifetime |
Ideal For
-
Off-road vehicles, UTVs, and Jeeps
-
Roof rack or Gobi rack lighting
-
Desert riding and trail crawling
-
Marine and heavy-duty utility setups
-
Addictive Desert Designs bumpers
What’s in the Box
-
40" Curved LED Light Bar
-
Complete wiring harness with fuse, relay & switch
-
Mounting brackets & 12-gauge wire
-
All installation hardware
*Sold as an Individual
Specifications:
- Beam Pattern: Spot-Flood Combo
- Housing: Black
- Length (Inches): 40"
- Voltage - Input Range (Volts): 12v
- Box Dimensions: 6"H x 8"W x 46"L WT: 15 lbs
- UPC: 850044517633
