AC to DC Wizard Dimmable LED Driver – Reliable Power for LED Applications

Why Choose the Wizard Series?

The Wizard Series sets itself apart from generic LED drivers by delivering true dimmable performance without strobing or brightness drop-off at low levels. Each unit is rigorously tested to meet marine-grade reliability standards, ensuring consistent output and long-lasting performance even in saltwater environments.

Trusted by professionals, the Wizard Series provides flicker-free lighting and durable construction that outperforms traditional drivers.

Installation Tips

• Use 14–18 AWG wire for AC input and 16–20 AWG wire for DC output.
• Mount in a ventilated area with at least 2 inches of clearance for heat dissipation.
• For marine or RV use, seal connections with dielectric grease or waterproof connectors.
• Always verify dimmer compatibility before full installation.

Why You’ll Love It

• True Dimmable Control – Works seamlessly with standard triac and ELV dimmers for smooth fade control and zero flicker.

• Marine-Ready Durability – Engineered for harsh, humid, or outdoor conditions with IP-rated protection and overload safeguards.

• High Efficiency – Converts power with up to 92% efficiency, reducing energy loss and heat buildup.

• Universal Input Range – Accepts 100–277V AC, ideal for both U.S. and international electrical systems.

• Plug-and-Play Installation – Compact form factor mounts easily in bulkheads, cabinets, or lighting compartments.

Available Variants & Specifications:

Part Number	Output Voltage	Wattage	Input Voltage	Max Amperage
007.120800.120	12VDC	12W	100-120V AC	1A

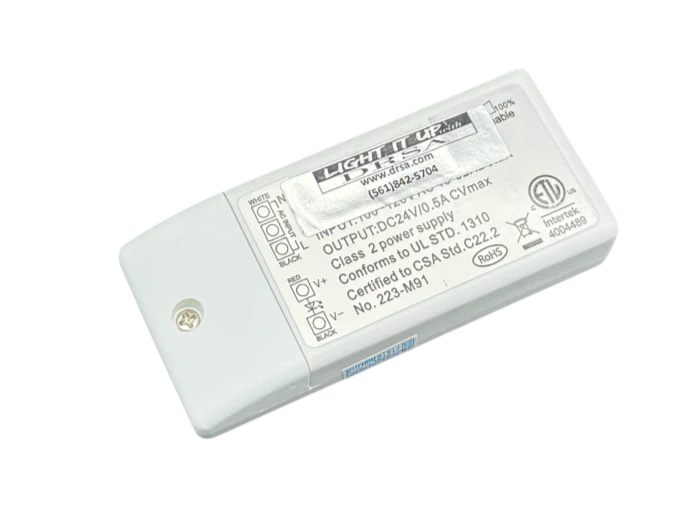

007.120800.120-24	24VDC	12W	100-120V AC	0.5A
007.301000.G2	12VDC	30W	100-277V AC	2.5A

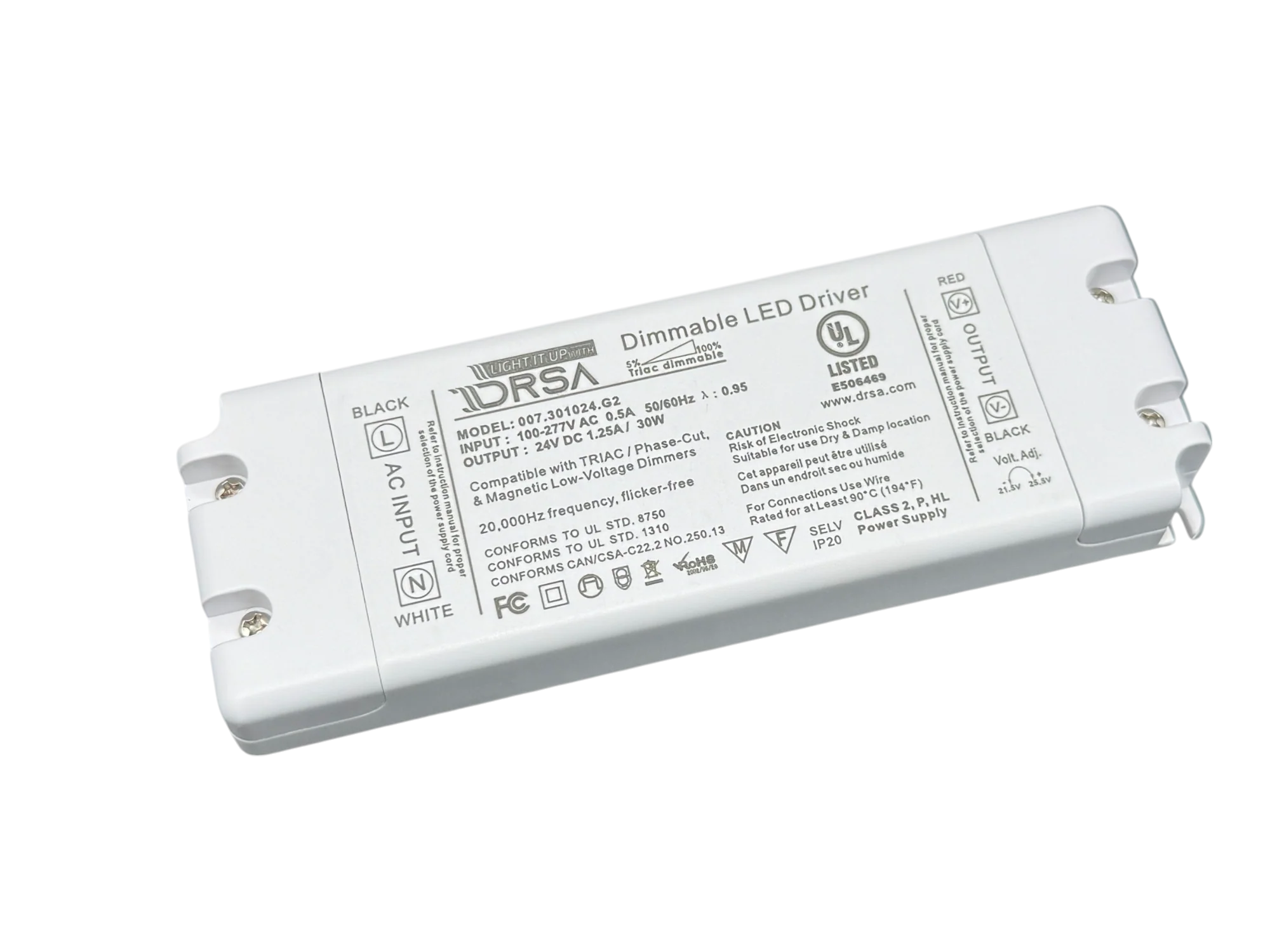

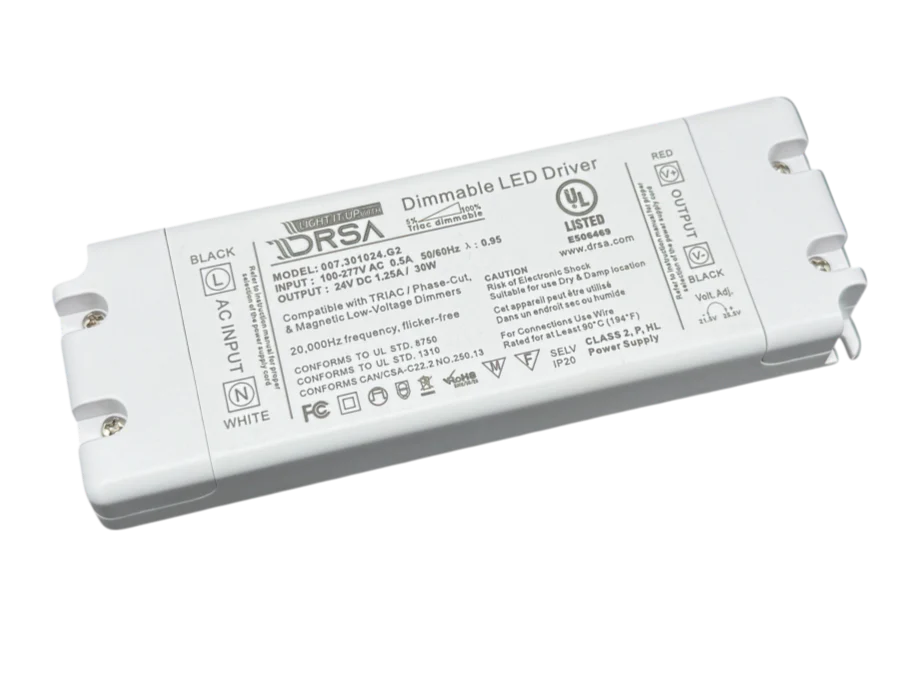

007.301024.G2	24VDC	30W	100-277V AC	1.25A

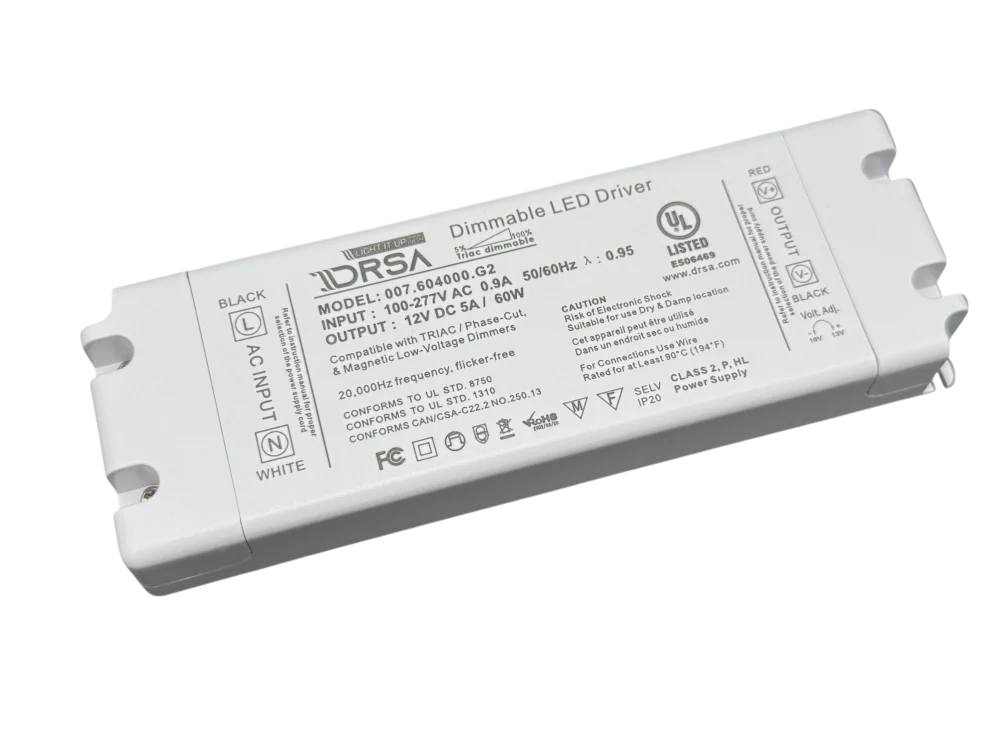

007.604000.G2	12VDC	60W	100-277V AC	5A
007.604000.G2-24	24VDC	60W	100-277V AC	2.5A
007.805500.G2	12VDC	80W	100-277V AC	6.67A
007.805524.G2	24VDC	80W	100-277V AC	3.33A
007.120700.G2	12VDC	120W	100-277V AC	10A
007.120724.G2	24VDC	120W	100-277V AC	5A
007.12200.G2	12VDC	200W	100-277V AC	16.67A
007.24200.G2	24VDC	200W	100-277V AC	8.33A
007.24300.G2	24VDC	300W	100-277V AC	12.5A

Perfect For:

💡 Marine LED lighting systems
🏠 Architectural & home lighting
🚐 RV & automotive LED applications
🏢 Commercial LED installations
🔌 Custom dimmable LED setups

Why Choose the Wizard Series

The Wizard Series stands apart from generic LED drivers by offering true dimmable performance without strobing or drop-off at low brightness levels. Every unit is tested to meet marine-grade reliability standards, ensuring consistent output and long life even in saltwater environments.

Customers trust the Wizard series for flicker-free lighting and durable construction that outlasts traditional drivers.

Installation Tips

• Use 14–18 AWG wire for AC input and 16–20 AWG for DC output.

• Mount in a ventilated area with at least 2 inches of clearance for heat dissipation.

• For marine or RV use, seal connections with dielectric grease or waterproof connectors.

• Always verify dimmer compatibility before full installation.

Warranty

DRSA 3-Year Warranty
Covers defects in materials and workmanship for three years from the purchase date.

For technical support or wiring guidance, contact DRSA at (561) 842-5704 or email [email protected].
