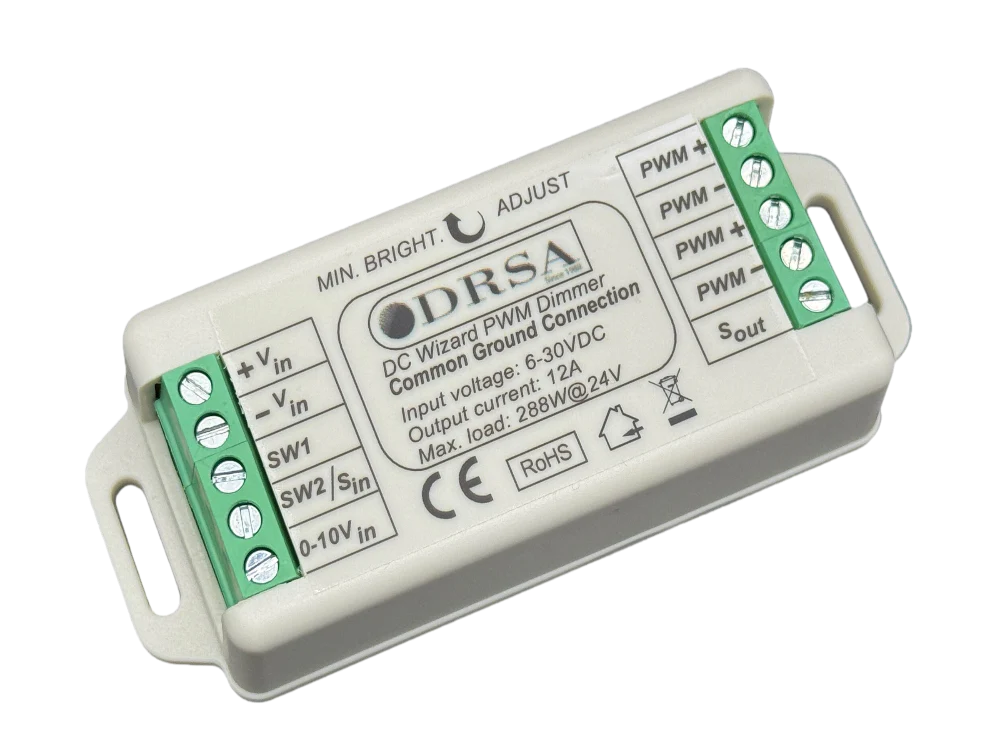

DC Wizard PWM Dimmer 5-12A
DC Wizard PWM Dimmer 5-12A – Smooth, Flicker-Free LED Dimming
Enhance your LED lighting control with the DC Wizard PWM Dimmer 5-12A, designed for smooth, no-flicker dimming of low-wattage dimmable LEDs. This high-performance dimmer ensures precise brightness adjustment, making it ideal for marine, RV, and automotive applications.
⚡ Key Benefits:
✅ Flicker-Free Performance – Ensures seamless dimming without flashing or strobing.
✅ Customizable Control – Works with a momentary or potentiometer dimmer switch (sold separately).
✅ Versatile Compatibility – Supports 5A, 8A, and 12A circuits, so you can match the right dimmer to your LED wattage.
✅ Efficient & Reliable – Uses Pulse Width Modulation (PWM) technology for stable and efficient dimming.
✅ Compact & Durable Design – Built for marine and vehicle environments, ensuring long-lasting performance.
📌 Important Note: A separate momentary or potentiometer dimmer switch is required (not included). Need a switch? Call (561) 842-5704 for assistance.
Safety Features:
✅ No-Load Proof: Yes
✅ Short Circuit Protection: Yes, automatic shutoff, reversible
✅ Overload Protection: Yes, automatic shutoff, reversible
✅ Overheating Protection: Yes, reversible
Housing & Mounting Details:
| Feature | Specification |
|---|---|
| Housing Dimensions (W x D x H) | 40mm x 96mm x 20mm (1.5" x 3.75" x 0.75") |
| Mounting Hole Pitch | 88mm (3.5") |
| Input & Output Connections | Screw terminal for wire 2mm² (AWG 14) max |

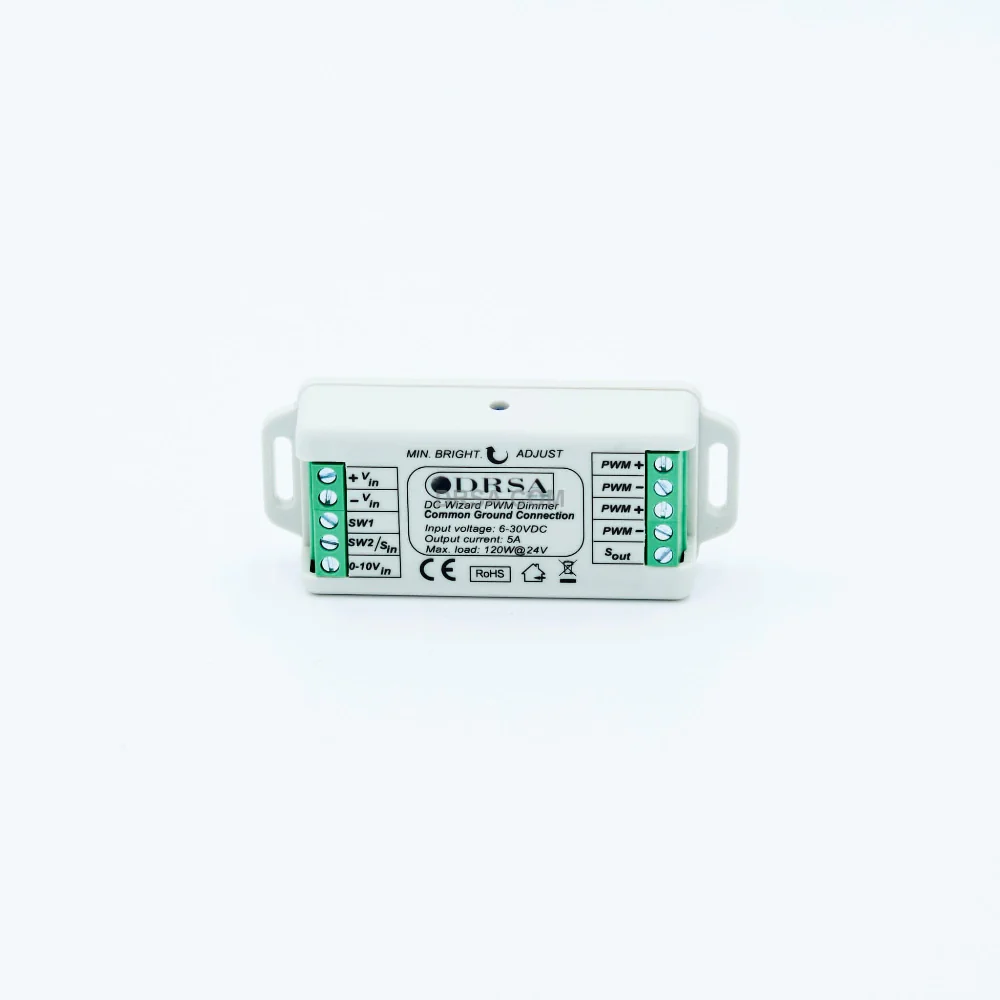

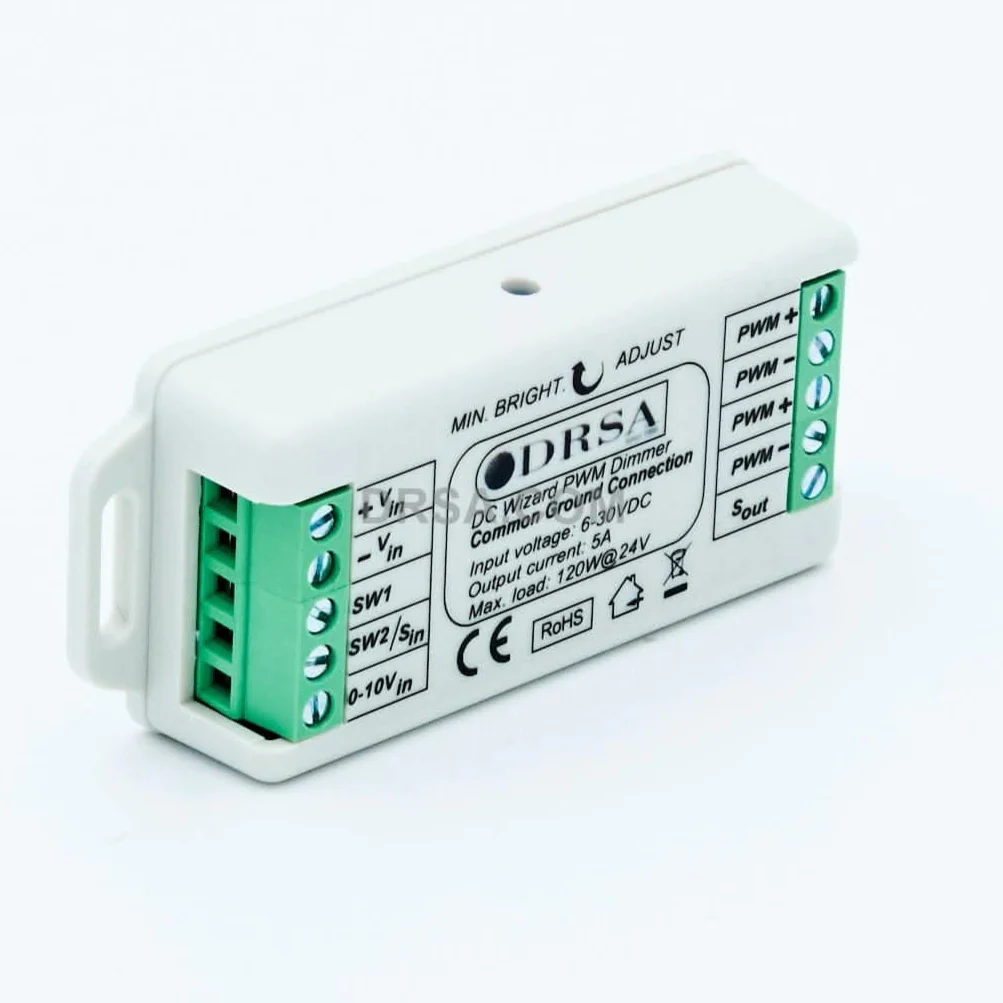

Installation Instructions:
🔹 Connect the unit according to the control signal used (see wiring diagrams).
🔹 Can be mounted with screws, double-sided tape, or cable ties.
🔹 Ensure sufficient heat dissipation (ambient temperature must not exceed 50°C).
🔹 Use proper wire gauge to minimize voltage drop and avoid flickering.
🔹 For long supply wires, use a buffering capacitor (10,000μF) to filter RFI emissions and voltage instability.
Why Choose the DC Wizard PWM Dimmer?
✅ Smooth, flicker-free dimming using PWM technology
✅ Compatible with momentary & potentiometer dimmer switches
✅ Works with 12V-24V DC systems
✅ Multiple safety features (short circuit, overload, overheating protection)
✅ Compact and easy to install
Perfect for:
✔ Marine LED lighting control
✔ RV and camper LED dimming
✔ Automotive and truck LED brightness adjustment
✔ Low-voltage LED installations
Upgrade Your LED Lighting Control Today!
Achieve seamless dimming and full control of your dimmable LEDs with the DC Wizard PWM Dimmer 5-12A. Perfect for boats, RVs, and automotive setups, this dimmer ensures precise, flicker-free performance.
Electrical Specifications:
| Feature | 5A-CG Model | 8.5A-CG Model | 12A-CG Model |
|---|---|---|---|
| Supply Input Voltage (Normal) | 12 - 24V DC | 12 - 24V DC | 12 - 24V DC |
| Supply Input Voltage (Min - Max) | 6 - 30V DC | 6 - 30V DC | 6 - 30V DC |
| Supply Input Current | 5A | 8.5A | 12A |
| Output Current Max | 5A | 8.5A | 12A |
| Output Load Max | 60W @ 12VDC / 120W @ 24VDC | 100W @ 12VDC / 200W @ 24VDC | 144W @ 12VDC / 288W @ 24VDC |
| Control Voltage | 1-10V DC (0V = OFF) | ||
| Control Current Max | 0.1mA | ||
| Control | 0-10V controls, Potentiometer (100K Ohm), Dry Contact, Open Collector | ||
| Dimming Mode | Adaptive Pulse Modification PWM | ||
| Operating Frequency | 390 Hz | ||
| Dimming Range | 0-100% | ||
| Dimming Resolution | 65,000 steps | ||
| Temperature Range | 0°C to +50°C |
Frequently Asked Questions
- Does it need a separate switch? Yes, it works with a momentary or potentiometer dimmer switch, which you buy separately. Call us at (561) 842-5704 if you need help finding one.
- Is it compatible with 12V systems? Yes, it operates on 12-24V DC, making it compatible with most marine and RV electrical systems.
- Will it flicker? No, the PWM technology ensures smooth, flicker-free dimming across the full range.
- Can I install it myself? Yes, mount it with screws, tape, or ties, and connect via screw terminals. Use the proper wire gauge to avoid issues.
- What if it overheats? It has built-in protection that shuts off automatically and resets once cooled.
Why Choose DC Wizard PWM Dimmer 5-12A? This dimmer provides reliable, flicker-free control for your LEDs in demanding environments. Its safety features protect your system, and the compact design makes installation straightforward. Customers choose it for its precise dimming and long-term performance, which keeps their setups running smoothly.
Upgrade your system with marine-grade reliability. Order today at DRSA.com.
